Fully Automatic Nail Polish Filling Machine
It provides maximum efficiency with a fast, precise and hygienic production process.
Nail Polish
Technical Parameters
| Voltage: | AC 380V 3 Phase 50/60 HZ 15 kw |
| Filling Accuracy: | ±0.1ml according to bottle volume |
| Capacity: | 45-55 pcs/min |
| Air Pressure: | 6 Bar |
| Fill Range: | 5 ml - 15 ml |
Area of Use
This machine is widely used for filling nail polish products.
The product output of the machine can be integrated with the labeling machine.
- Modular design, PLC control unit
- Level filling nozzle with vacuum pump
- Servo motor driven precision filling system with portable filling trolley
- Dual filling nozzles
- Ability to monitor parameters such as torque, speed, etc. on the touch screen with servo closing system
- Tube, brush and cap control thanks to sensors
- Manual bottle stacking conveyor for different types of bottles
- Easy to change interlocking mold system
Fully Integrated Automation System
This machine includes an integrated system that automatically brings the bottles into the filling zone and screws on the caps. Bottle orientation, filling, capping and labeling are performed on a single line, optimizing production processes.
Precision Vacuum Filling Technology
The vacuum pump filling system fills each bottle evenly, ensuring a consistent product. A special mechanism prevents foaming or air bubbles during filling. This ensures that the filling process is both hygienic and highly precise.
- Vacuum filling system: Provides foam-free and precise filling.
- Sensor-assisted capping: Minimizes defective production.
- Fully integrated production line: Filling, capping and labeling in one machine.

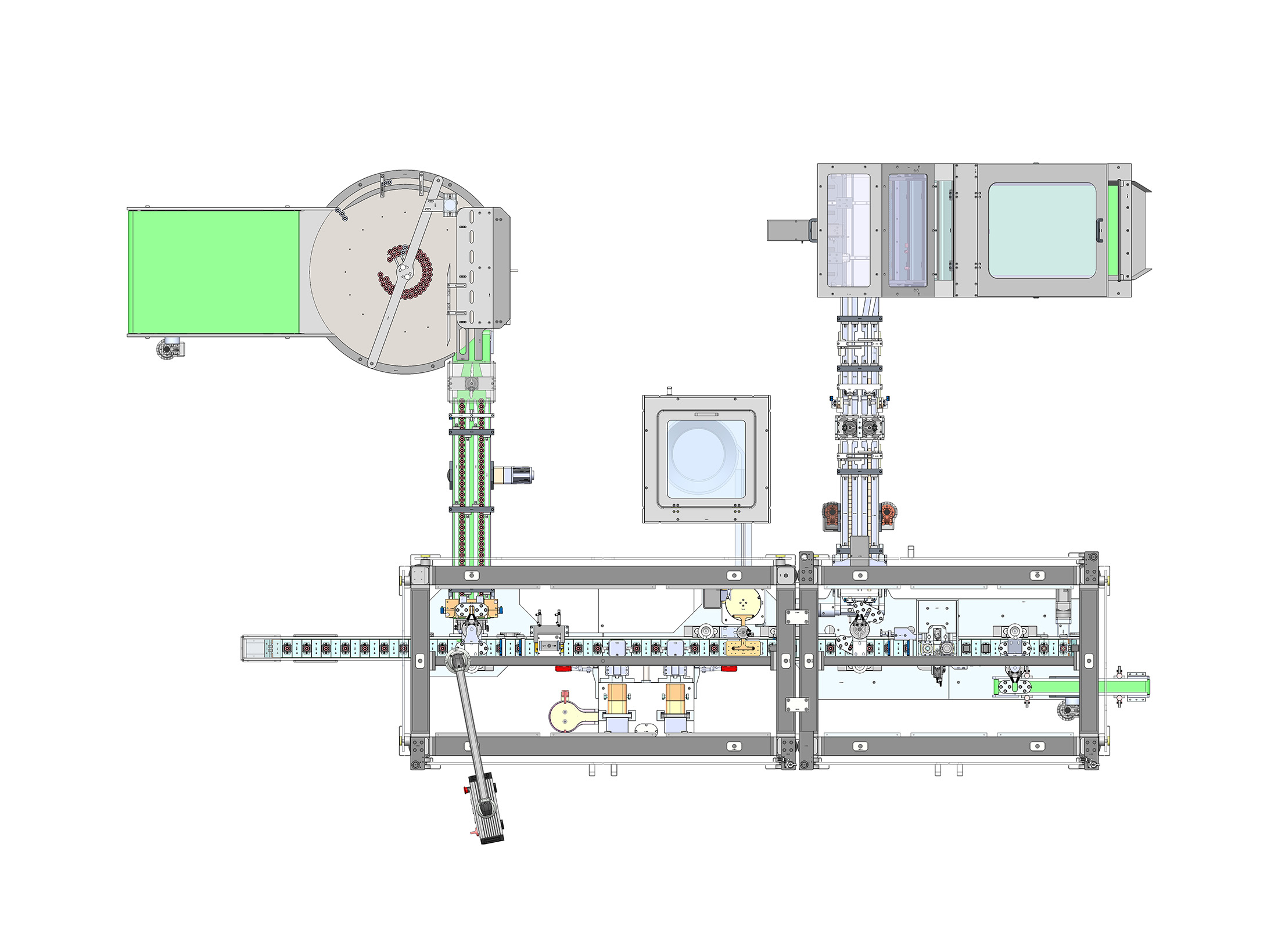

Technical Drawings
